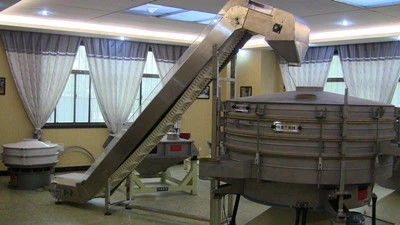

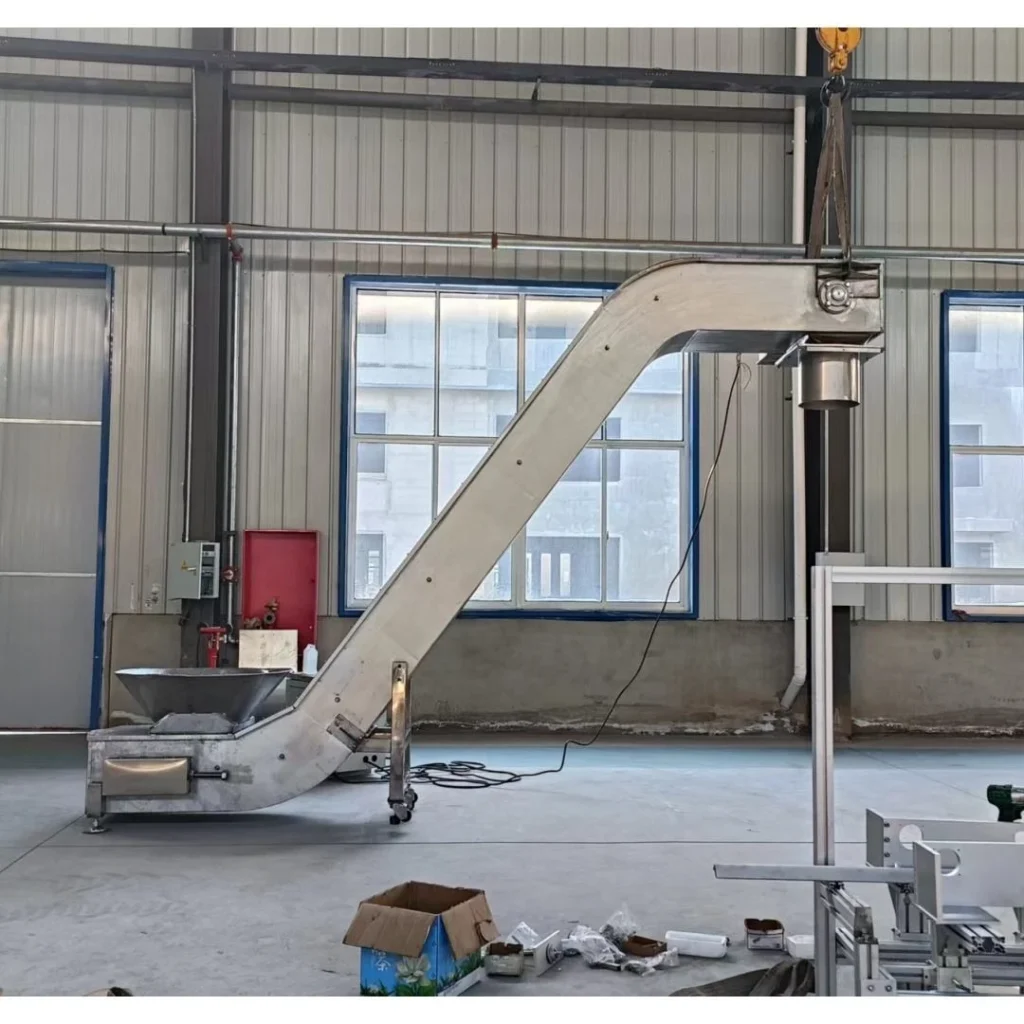

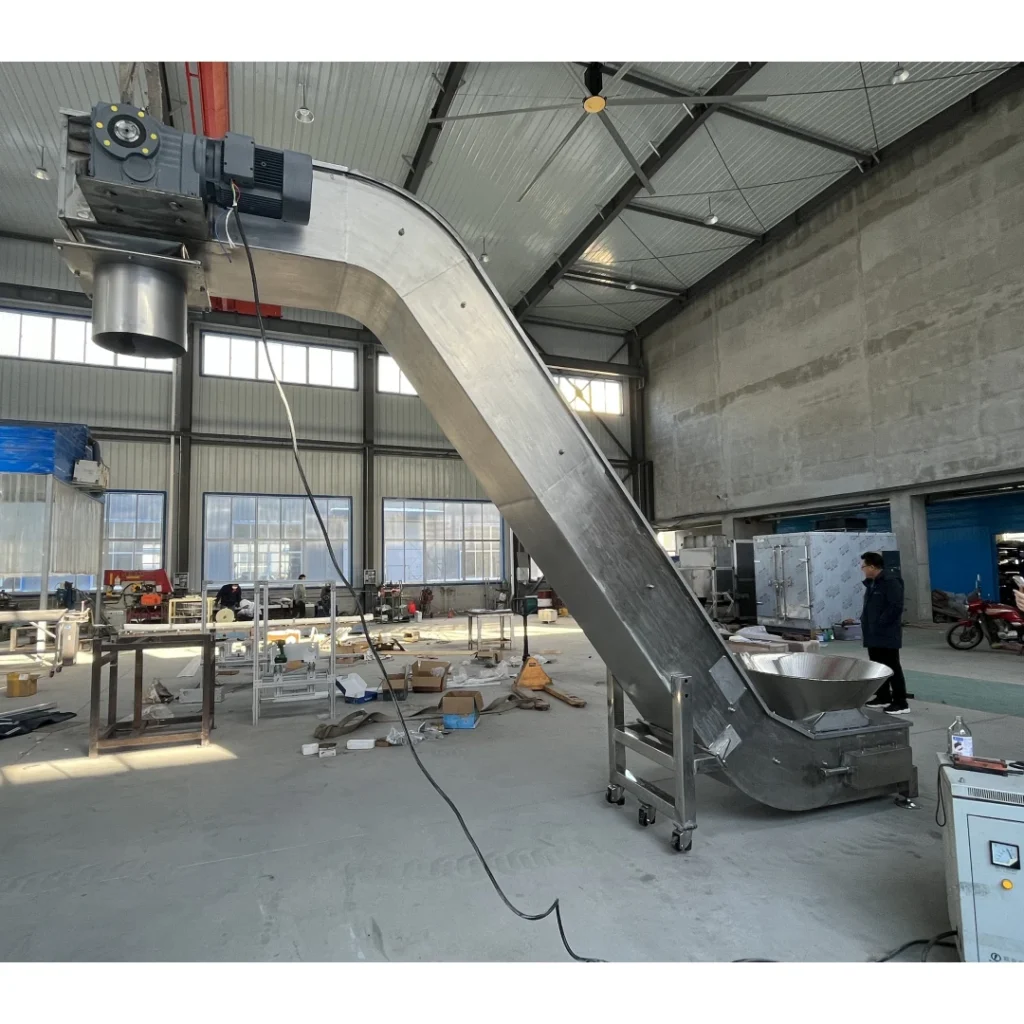

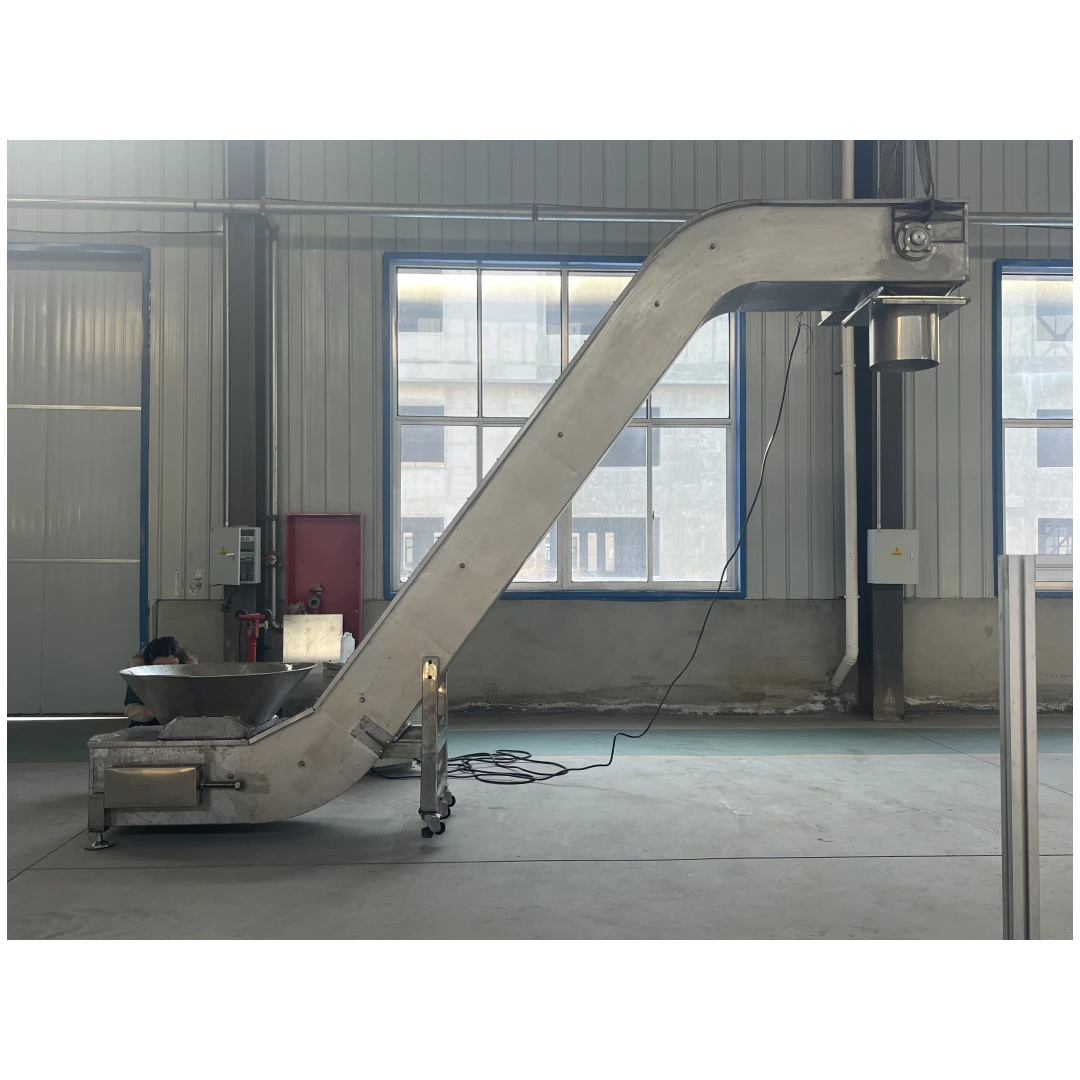

Cleated Belt Conveyor | Jiarui Inclined Bulk Material Handling System
The Jiarui Cleated Belt Conveyor is a high-efficiency bulk material handling system designed for inclined, vertical, and horizontal conveying of powders, granules, and bulk solids.
As a professional conveying equipment manufacturer, Jiarui focuses on high-reliability material handling systems for harsh industrial environments. The Cleated Belt Conveyor is engineered to solve key problems in traditional conveyors such as material slipping, dust leakage, and limited incline angle.
- Supports up to 45° inclined conveying
- Designed for powders, granules, and mixed bulk materials
- Provides stable, continuous, and low-maintenance operation
Features of Cleated Belt Conveyor
1. High-Angle Inclined Conveying Capability
- Supports conveying angles up to 45° (standard design)
- Optional steep incline design with modified cleat structure
- Prevents material rollback and slippage effectively
2. Fully Enclosed Anti-Spillage Design
- Integrated side skirts + cleats + sealing system
- Minimizes dust leakage for powder materials
- Ensures clean and safe working environment
3. Flexible Forward & Reverse Operation
- Supports bi-directional conveying

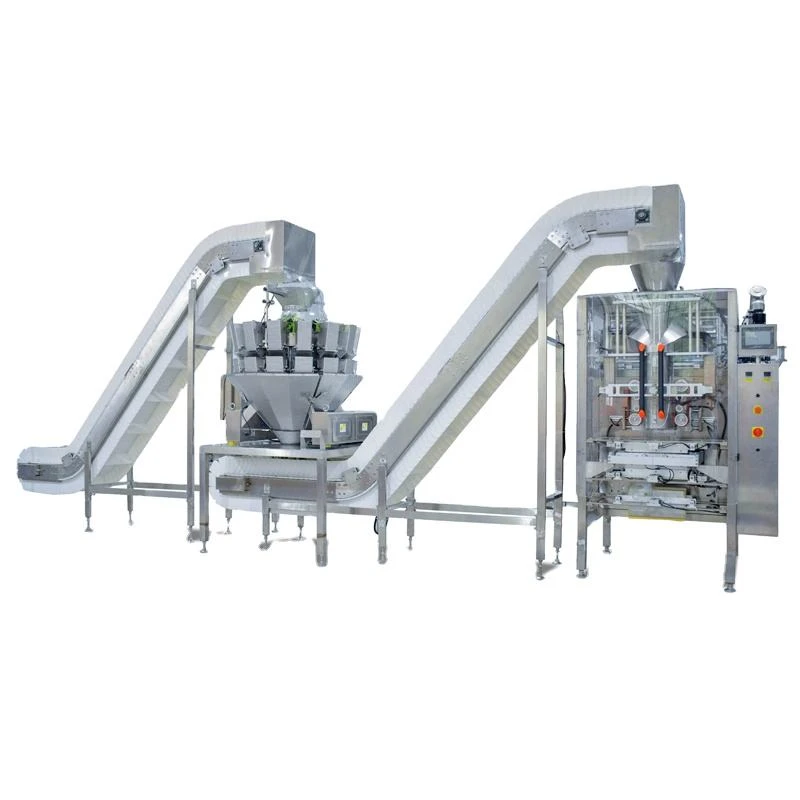

- Ideal for batching, dosing, and automated production lines
- Stable tension control for reversing operation
4. Modular Structure Design
- Bolt-connected frame for fast installation
- Easy maintenance and replacement of belt sections
- Customizable length, width, and height
5. Wear-Resistant Conveyor Belt System
- Rubber / PVC / PU belt options available

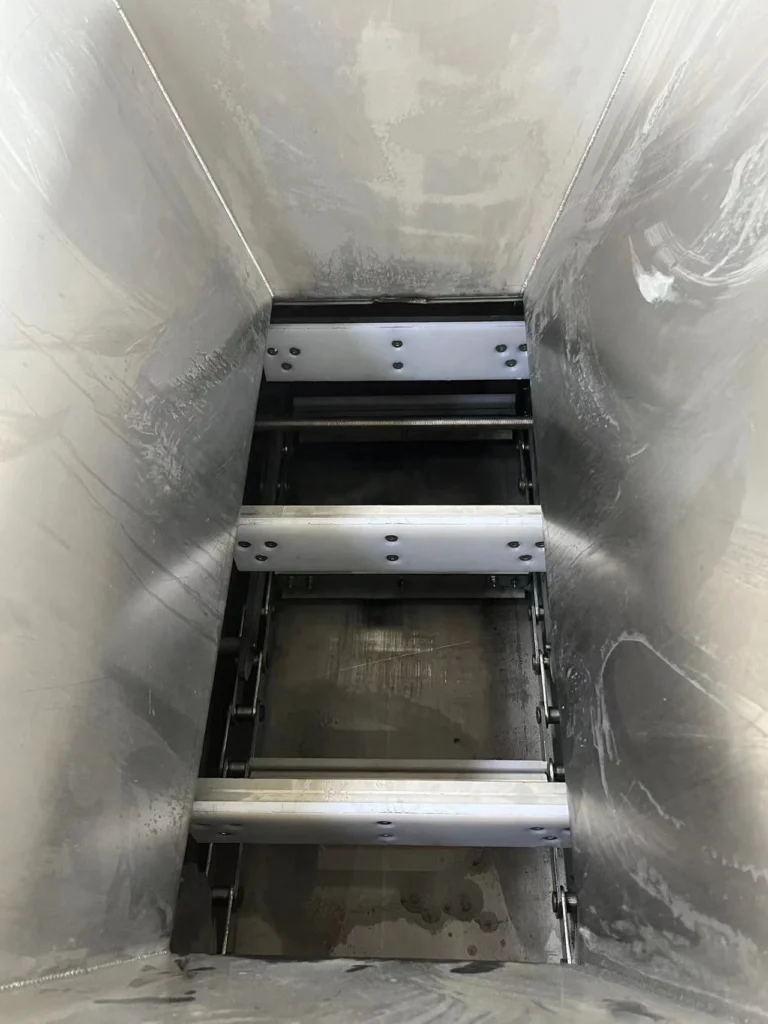

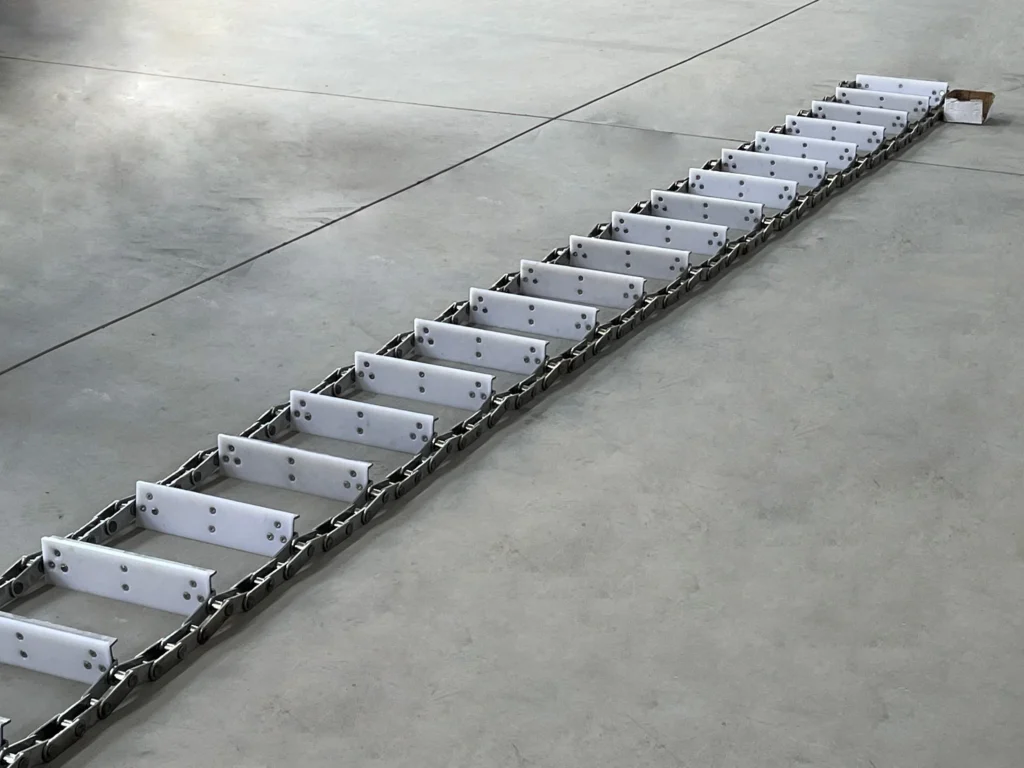

- Reinforced cleats for heavy-duty bulk materials
- Anti-slip surface for improved load stability
Working Principle
The Cleated Belt Conveyor operates through a continuous belt system equipped with cleats that lift and hold materials during transport. Side skirts prevent lateral leakage, while the drive pulley system ensures stable movement even under inclined or reversing conditions.
This combination allows materials to be:
- Lifted vertically or at steep angles
- Transported without backflow
- Discharged precisely at the target position
Customization Options
We provide fully customized Cleated Belt Conveyor systems based on your production needs:
- Cleat height & spacing customization
- Belt material selection (food-grade / industrial-grade)
- Frame material: carbon steel / stainless steel
- Dust-proof cover or fully sealed design
- Variable speed control system
- Sensor-based smart monitoring system
.
Technical Specifications of Jiarui Cleated Belt Conveyor
| Parameter | Range | Jiarui Engineering Description |
|---|---|---|
| Belt Width | 300 – 1200 mm | Customized for capacity requirements |
| Speed | 0.5 – 2.5 m/s | Powder materials use lower speed |
| Incline Angle | 0° – 45° | Custom steep design available |
| Lift Height | Up to 15 m | Based on layout design |
| Power | 0.75 – 30 kW | Selected according to load |
| Belt Material | Rubber / PVC / PU | Industry-specific selection |
Technical Parameters of Skirt Belt Conveyor
| Model | Trough Width (mm) | Motor Power (kW) | Inclination Angle (°) | Conveying Height (mm) | Conveying Distance (mm) |
|---|---|---|---|---|---|
| ZDS200 | 200 | 0.55 | 20-45 | 1000-3000 | 1500-3500 |
| ZDS300 | 300 | 0.75 | 20-45 | 1000-3500 | 1500-3500 |
| ZDS400 | 400 | 1.5 | 20-45 | 1000-4000 | 1500-4000 |
| ZDS500 | 500 | 2.5 | 20-45 | 1000-4500 | 1500-4500 |
| ZDS600 | 600 | 3 | 20-45 | 1000-4500 | 1500-4500 |
| ZDS700 | 700 | 4 | 20-45 | 1000-5000 | 1500-5000 |
| ZDS800 | 800 | 5.5 | 20-45 | 1000-5000 | 1500-5000 |
| ZDS900 | 900 | 7.5 | 20-45 | 1000-5500 | 1500-5500 |
Applications of Jiarui Cleated Belt Conveyor
The Jiarui Cleated Belt Conveyor is widely used across multiple industries where inclined, stable, and dust-free bulk material conveying is required. Its flexible design allows it to handle a wide range of materials, from fine powders to heavy granular and bulk solids.
Agriculture & Bulk Handling
Seeds, feed, corn, rice
Gentle handling to avoid material damage
Construction Materials
Sand, gravel, cement, limestone
Heavy-duty reinforced belt system
High wear resistance for abrasive materials
Chemical Industry
Fertilizers, powders, resins, additives
Anti-corrosion and anti-static belt options
Dust-free sealed conveying system
Food Industry
Flour, sugar, grains, snacks
Food-grade stainless steel frame available
Hygienic and easy-to-clean design
