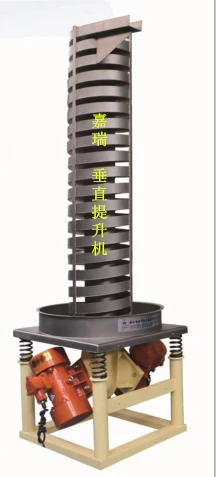

Vibrating Spiral Elevators

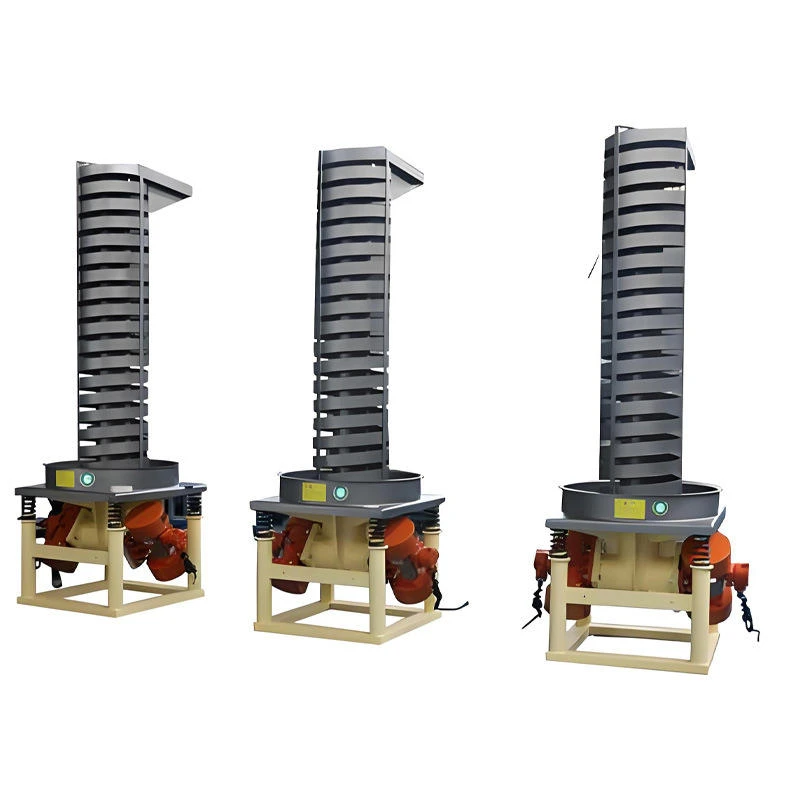

JR Vibrating Spiral Elevators, also known as vertical spiral conveyors, utilize vibrating motors as the vibration source. By leveraging the combined amplitude of two vibrating motors, they transport materials upward along the lifting trough. These vertical elevators are primarily used for lifting granular, powdery, and lumpy materials. This elevator features a simple structure and is easy to maintain. It delivers material in a metered manner, with a continuously adjustable lifting capacity, making it suitable for the vertical conveyance of medium- and small-sized granular materials across various industries. It is available in two configurations: open-trough and enclosed.

Motor Power: 0.25-3 kw
Capacity: 100Kg-2000kg/hour
Customized: Acceptable

Request a Quote send to email

Working Principle of Vibrating Spiral Elevators

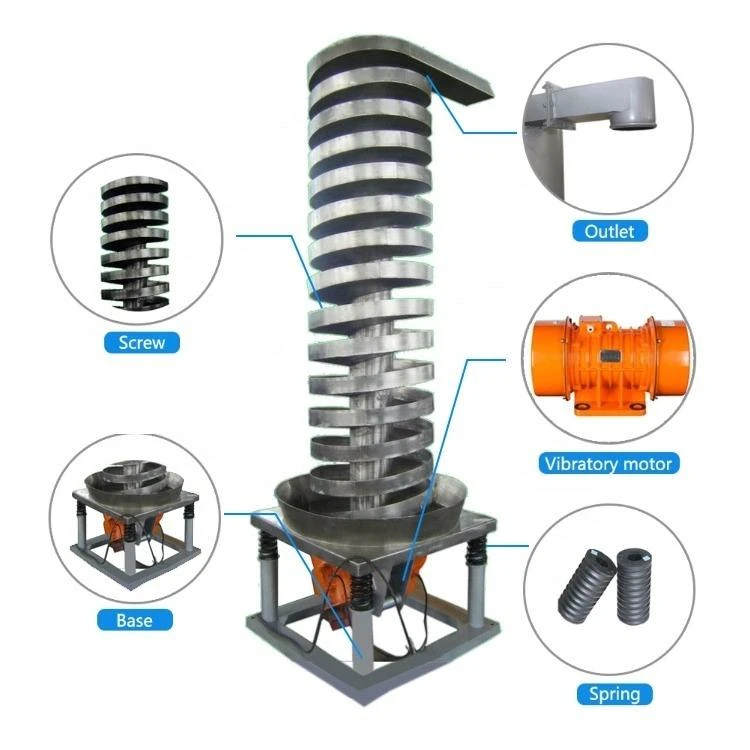

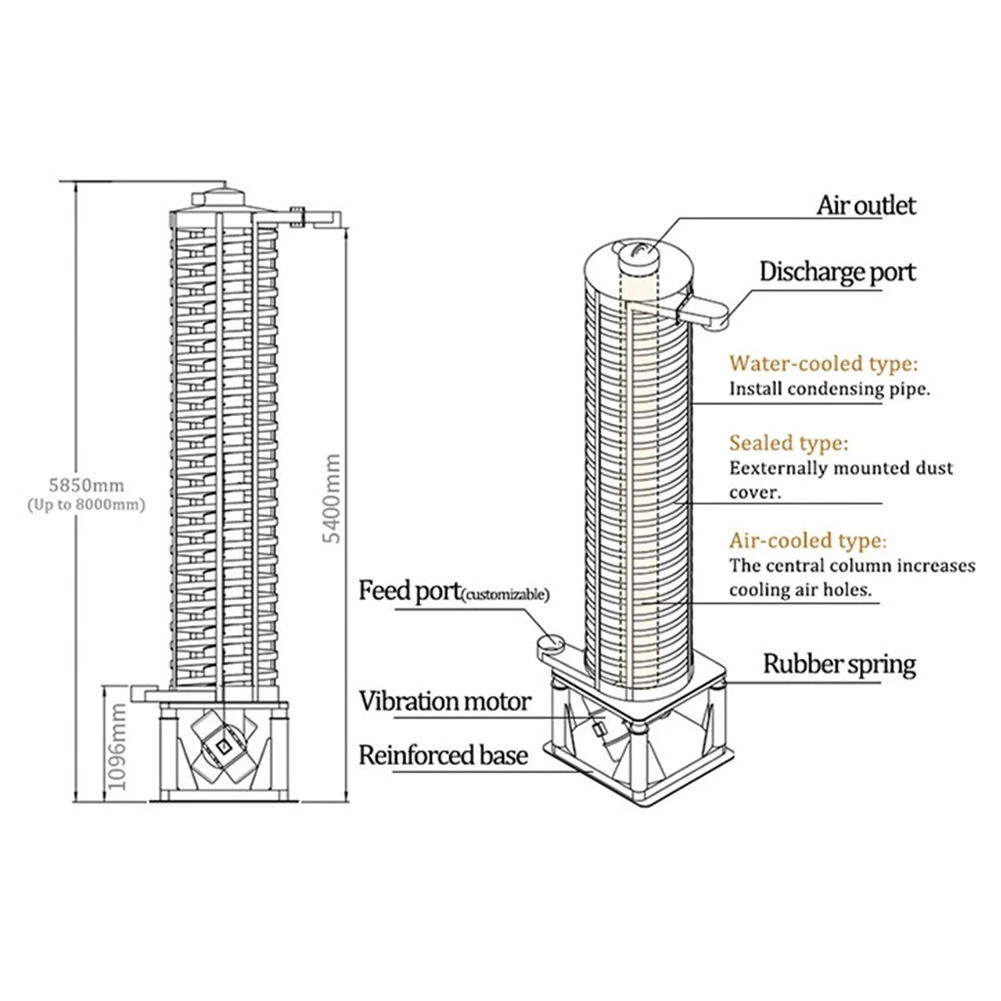

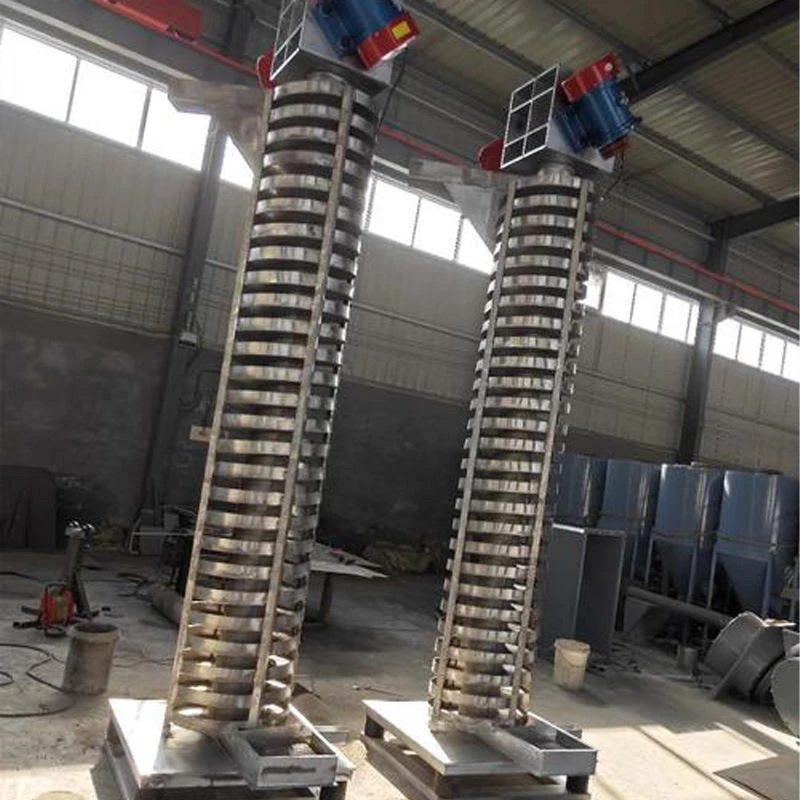

The JR series vibrating spiral elevators consist of a lifting trough, vibrating motors, a vibration-damping system, and a base. This series of elevators uses vibrating motors as the vibration source. Two vibrating motors of the same model are mounted on the lifting trough with their centerlines intersecting at a certain angle, and they rotate in opposite directions in a self-synchronized manner. The centrifugal forces generated by the eccentric weights on the vibrating motors at each instantaneous position during rotation cause the entire unit, supported by the vibration dampers, to vibrate continuously. This action causes the material in the lifting trough to be thrown upward and move vertically. After the material falls into the trough, it begins to be thrown upward again, allowing for sufficient contact with air and facilitating heat dissipation and cooling. This elevator is capable of vertically conveying powdered, lumpy, and short-fibre solid materials (excluding those that are sticky or prone to caking). It is available in two configurations: open and enclosed. Custom designs can also be provided according to customer requirements.

Features

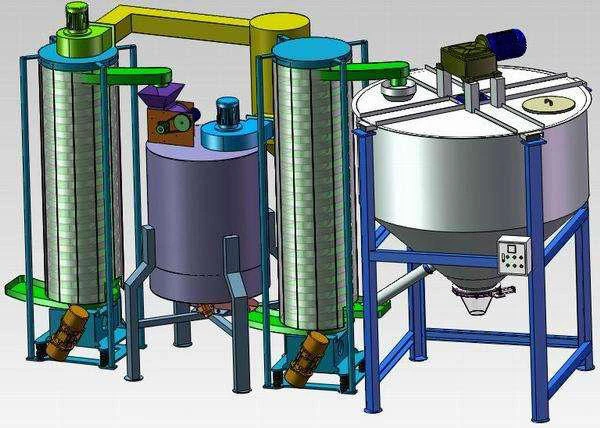

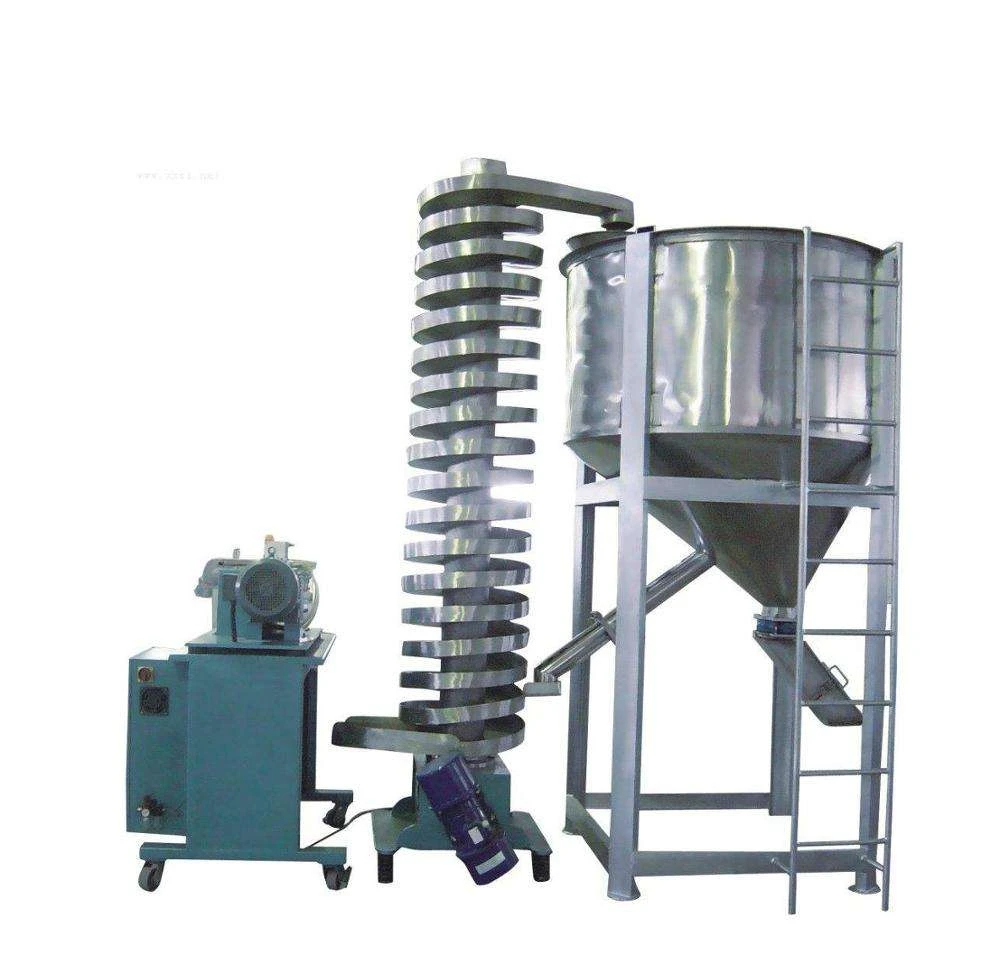

Spiral elevators can be customized to meet specific industry needs. They can be designed with multiple inlets and outlets, different angles or heights, and can even be integrated with other equipment such as cooling or drying systems.

Spiral elevators provide a continuous and smooth vertical movement of materials. This allows for a constant flow of goods without the need for frequent starts and stops.

Efficient Space Utilization

Spiral elevators have a compact design that saves valuable floor space.

Increased Throughput

The spiral design enables a higher throughput compared to traditional elevators or conveyors.

Gentle Material Handling

Spiral elevators are gentle on materials, reducing the risk of damage or breakage. Suitable for delicate or fragile products that require careful handling, such as electronics or glassware.

Safety

Spiral elevators are equipped with safety features such as emergency stop buttons, safety interlocks, and guarding systems, ensuring the safety of operators and preventing accidents.

Technical Specifications of Vibrating Spiral Elevators

Model	DCZ-300	DCZ-400	DCZ-500	DCZ-600	DCZ-800	DCZ-1000
Capacity (t/h)	≤0.5	≤1	≤2	≤3	≤4	≤5
Lifting Height (mm)	≤2500	≤3500	≤4500	≤5000	≤6000	≤6000
Power (KW)	0.37-0.75	0.75-1.1	0.75-1.5	0.75-2.2	1.1-2.2	1.1-3.7
Trough Diameter (mm)	300	400	500	600	800	1000
Rated Voltage (V)	380	380	380	380	380	380
Rated Current (A)	1.2-2.2	—	—	—	—	—
Double Amplitude (mm)	6–8	6–8	6–8	6–8	6–8	6–8

Application

Vibrating spiral elevator is suitable for powder, particle solid material of low viscosity.

Food industry: Sugar powder, starch, milk powder, egg powder, rice powder, food additive, seasoning, spice, etc.
Chemical industry: Fertilizer, detergent powder, sodium carbonate, talcum powder, dyestuff, rubber, PVC resin, pigment, cosmetics, coatings, Chinese medicine powder, fiber, etc.
Metal, metallurgy industry: Copper powder, nickel powder, aluminum powder, copper granule, ore alloy powder, welding powder, battery material, abrasive powder, fire-proof material, etc.
