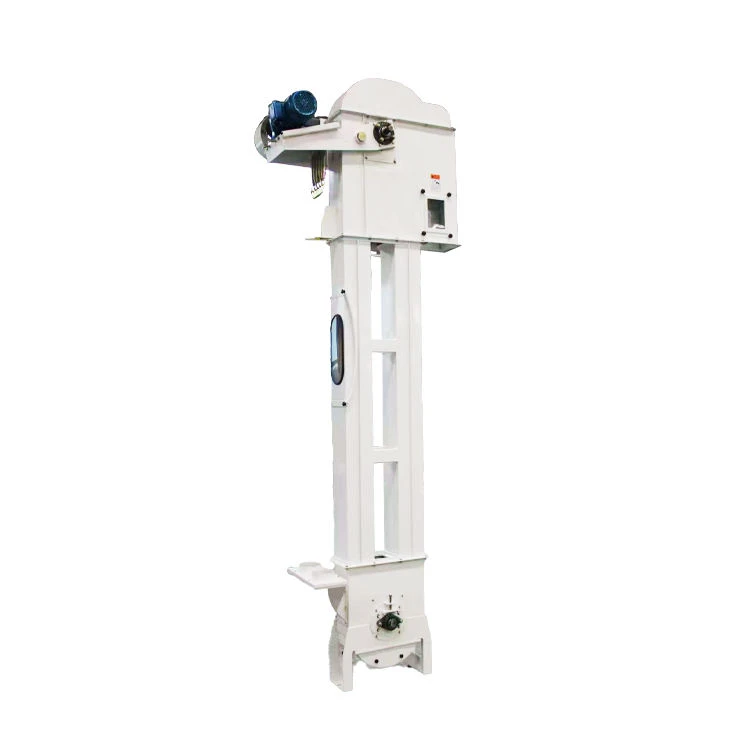

Bucket Elevator Conveyor
The bucket elevator conveyor is suitable for lifting materials from lower to higher elevations. After the material is fed into the buckets via a vibrating table, the machine automatically operates continuously to transport the material upward.
The conveying speed can be adjusted according to the conveying capacity, and the lifting height can be selected as needed. The buckets are custom-designed and manufactured; the use of non-toxic PP buckets makes this bucket elevator model suitable for a wide range of applications. All dimensions are designed and manufactured to meet specific requirements. Designed to integrate with vertical packaging machines and computerized weighing machines, it is suitable for lifting and feeding products such as food, pharmaceuticals, chemical products, screws, and nuts. The machine can be automatically started and stopped based on signals from the packaging machine.

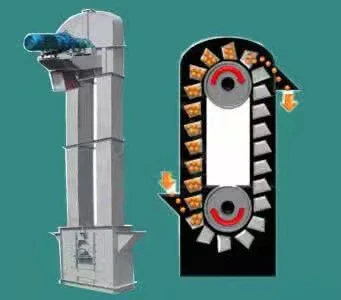

Working Principle of Bucket Elevator Conveyor
The buckets scoop material from the storage bin below and are lifted to the top by a conveyor belt or chain. After passing over the top pulley, they tip downward, and the bucket elevator discharges the material into a receiving hopper. In belt-driven bucket elevators, the drive belt is typically made of rubber and is mounted on the drive pulley at the bottom or top, as well as on the return pulleys at the top and bottom. Chain-driven bucket elevators are generally equipped with two parallel drive chains, with a pair of drive sprockets at the top or bottom and a pair of idler sprockets at the bottom or top. Bucket elevators are usually enclosed in a housing to prevent dust from escaping.
Bucket Elevator: Suitable for lifting materials from a lower to a higher elevation; after the material is fed into the buckets via a vibrating table, the machine automatically operates continuously to transport the material upward.
Main Components
A bucket elevator consists of a housing, a traction member (conveyor chain), buckets, a drive pulley (head pulley), a return pulley (tail pulley), a tensioning device, a guide device, a feed inlet (inlet), and a discharge outlet (outlet).
Features of Bucket Elevator Conveyor
With low drive power, this system employs inflow feeding, induced discharge, and a dense arrangement of large-capacity hoppers. During material lifting, there is virtually no backflow or digging of material, resulting in minimal power loss.
Wide range of applications: This type of elevator has minimal requirements regarding material type and characteristics. It can handle not only general powdery and fine granular materials but also highly abrasive materials. It offers excellent sealing performance and causes minimal environmental pollution.
High operational reliability: Advanced design principles and manufacturing methods ensure the reliability of the entire machine, with a mean time between failures exceeding 20,000 hours. High lifting capacity: The elevator operates smoothly, enabling it to achieve significant lifting heights.
Long service life: The elevator employs a gravity-fed feeding system, eliminating the need for buckets to scoop material, which minimizes compression and impact between materials. The design ensures minimal spillage during feeding and unloading, thereby reducing mechanical wear.
Technical Specifications of Bucket Elevator Conveyor
A bucket elevator is a continuous conveying machine that lifts materials vertically using a series of buckets uniformly attached to an endless traction member. It can be classified into three types: chain, plate chain, and belt. D-type bucket elevator models:
The main models of D-type bucket elevators include: D160, D250, D350, D450, etc.
Technical specifications of D-type bucket elevators:
| Elevator Model | Drive Unit Version | Gearbox Code (Right-hand) | Gearbox Code (Left-hand) | Motor Model | Power (kW) | Weight (kg) |
| D160 | C1 | ZQ250-Ⅴ-3Z | ZQ250-Ⅴ-4Z | Y112M-6 | 2.2 | 170 |
| D250 | C1 | ZQ350-Ⅴ-3Z | ZQ350-Ⅴ-4Z | Y132S-6 | 3 | 449 |
| D250 | C2 | ZQ350-Ⅴ-3Z | ZQ350-Ⅴ-4Z | Y132M2-6 | 5.5 | 470 |
| D250 | C3 | ZQ400-Ⅴ-3Z | ZQ400-Ⅴ-4Z | Y132M2-6 | 5.5 | 568 |
| D250 | C4 | ZQ400-Ⅴ-3Z | ZQ400-Ⅴ-4Z | Y160M-6 | 7.5 | 640 |
| D350 | C1 | ZQ400-Ⅴ-3Z | ZQ400-Ⅴ-4Z | Y132M2-6 | 5.5 | 590 |
| D350 | C2 | ZQ400-Ⅴ-3Z | ZQ400-Ⅴ-4Z | Y160M-6 | 7.5 | 663 |
| D350 | C3 | ZQ500-Ⅴ-3Z | ZQ500-Ⅴ-4Z | Y160L-6 | 11 | 855 |
| D350 | C4 | ZQ500-Ⅴ-3Z | ZQ500-Ⅴ-4Z | Y160L-6 | 11 | 855 |
| D450 | C1 | ZQ400-Ⅳ-3Z | ZQ400-Ⅳ-4Z | Y160M-6 | 7.5 | 685 |
| D450 | C2 | ZQ500-Ⅳ-3Z | ZQ500-Ⅳ-4Z | Y160L-6 | 11 | 895 |
| Item / Project | Unit | D160 (S) | D160 (Q) | D250 (S) | D250 (Q) | D350 (S) | D350 (Q) | D450 (S) | D450 (Q) |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | m³/h | 8.0 | 3.1 | 21.6 | 11.8 | 42 | 25 | 69.5 | 69.5 |
| Bucket Capacity | L | 1.1 | 0.65 | 3.2 | 2.6 | 7.8 | 7.0 | 15 | 14.5 |
| Bucket Spacing | mm | 300 | 300 | 400 | 400 | 500 | 500 | 640 | 640 |
| Weight (Belt + Buckets) | kg/m | 4.72 | 4.72 | 8.8 | 10.2 | 9.4 | 13.9 | 12.1 | 21.3 |
| Belt Width | mm | 200 | 200 | 300 | 300 | 400 | 400 | 500 | 500 |
| Belt Layers | Layers | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 5 |
| Bucket Speed | m/s | 1.0 | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
| Drive Pulley RPM | r/min | 47.5 | 47.5 | 47.5 | 47.5 | 47.5 | 47.5 | 37.5 | 37.5 |
| Max Material Size | mm | 25 | 25 | 35 | 35 | 45 | 45 | 55 | 55 |
Application
- Chemicals: resins, coatings, pigments, rubber, carbon black, activated carbon, solvents, glue, sodium sulfate, polyethylene powder, quartz sand, etc.
- Pharmaceuticals: Chinese medicine powder, Western medicine powder, pharmaceutical raw material powder, etc.
- Foods: sugar, salt, monosodium glutamate, starch, milk powder, soy milk, juice, rice flour, dehydrated vegetables, juice, yeast liquid, pineapple juice, fish meal, food additives, etc.
- Kiln industry: glass, ceramics, porcelain mud, grinding materials, refractory bricks, kaolin quicklime, mica, alumina, calcium carbonate (heavy), etc.
- Mining and Metallurgy: foundry sand, silica sand, quartz sand, lead powder, zinc oxide, titanium oxide, diamond powder, aluminum powder, iron powder, various metal powders, etc.
Manufactured sand
Sand
Quarz Sand
Grains
Plastic Particles
Clay
Steel Grit
Hardware Accessories
Different types of Bucket Elevator
Bucket elevators can be divided into two kinds: chain elevators and belt elevators according to the traction member. According to different materials can be divided into carbon steel and stainless steel two types. According to different discharging methods, bucket elevators can be divided into centrifugal discharge, gravity discharge, and mixed discharge.
Classification according to the traction member:
- Chain-type elevator: strong carrying capacity, high temperature. Maximum conveying capacity 5.4-2m3/h, lifting height 40m.
- Belt-type elevator: smooth running, low noise, suitable for light, conventional material transportation. Maximum conveying capacity 5.4-2m3/h, lifting height 50m
Belt bucket elevator
Chain bucket elevator
Classification according to manufacturing material:
- Carbon steel bucket elevator: lower cost, high strength. Suitable for general working conditions, with no special corrosive requirements for material conveying
- Stainless steel bucket elevator: good corrosion resistance and hygiene performance, easy to clean, and more environmentally friendly. Used in food processing industry, chemical industry, pharmaceutical industry, and other high-temperature or corrosive environments.

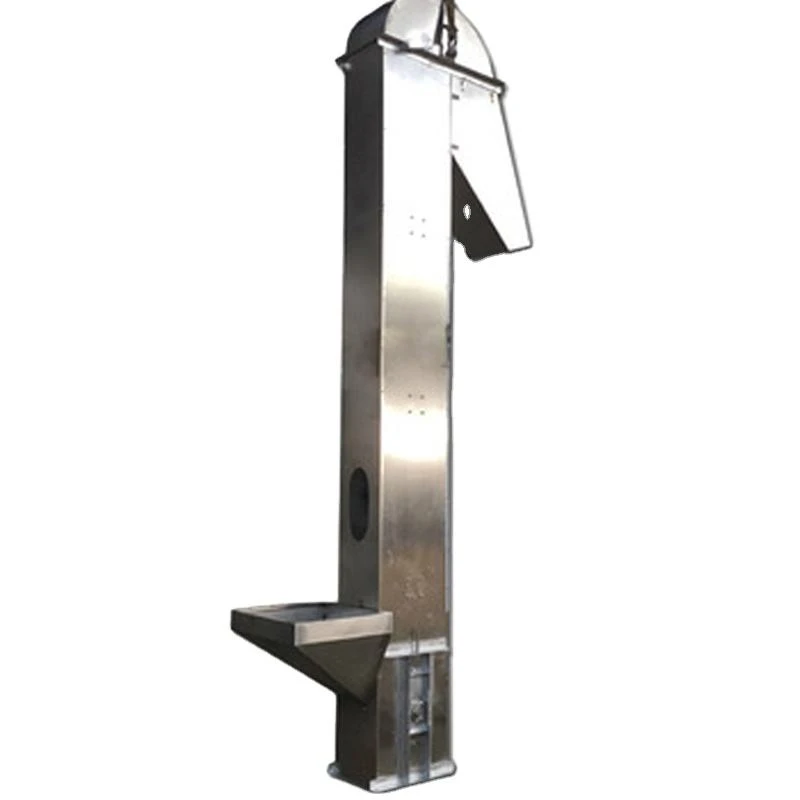

Stainless Steel Bucket Elevator
Bucket Elevator Conveyor
Classification by discharge method (based on operating speed)：
- Centrifugal discharging: using centrifugal force to realize rapid discharging, running speed of about 1.2-4 m/s, suitable for powdery and granular materials with good fluidity.
- Gravitational unloading: rely on the self-weight of the material unloading, running speed of about 0.4-1.0 m / s, suitable for fragile, abrasive materials.
- Mixed unloading: combining the advantages of centrifugal and gravity unloading, running speed of about 0.6-1.6 m/s, suitable for viscous, easy to agglomerate materials.
