Difference Between Horizontal and Vertical Centrifugal SiftersDifference Between Horizontal Centrifugal Sifter and Vertical Centrifugal Sifter

Comparison Item	Horizontal Centrifugal Sifter	Vertical Centrifugal Sifter
Installation Direction	Horizontal installation	Vertical installation
Equipment Design	Extends mainly in the horizontal direction	Extends mainly in the vertical direction
Floor Space	Requires a certain installation length	Relatively small floor footprint
Height Requirement	Relatively low	Requires a certain plant height
Material Flow Direction	Mainly horizontal	Mainly vertical
Production Line Layout	Better suited to horizontal production lines	Better suited to compact or vertical layouts
Common Applications	Continuous powder screening	Fine and ultrafine powder screening

What Are the Main Differences Between Horizontal and Vertical Centrifugal Sifters?

1.Shape and Installation: One Is Horizontal, the Other Is Vertical

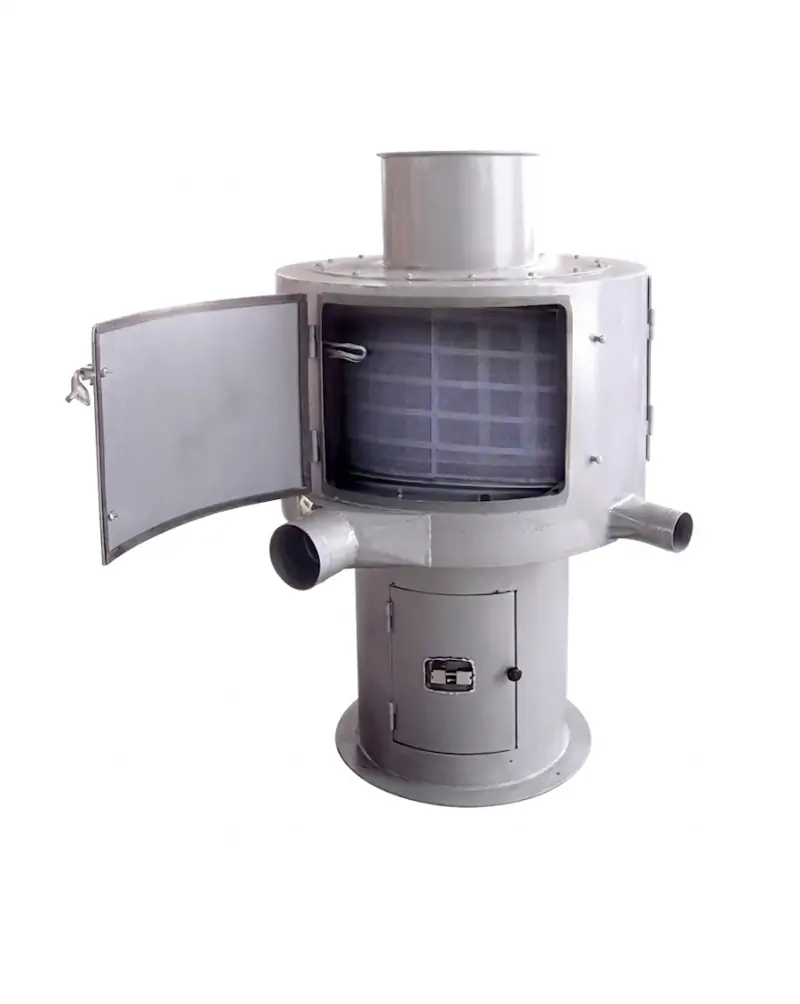

The main structural difference is the direction in which the screening system is arranged. A horizontal centrifugal sifter is arranged horizontally and requires more floor length, while the vertical type is arranged vertically and makes greater use of the plant’s height.

If the production line is mainly laid out horizontally, the horizontal type is usually easier to connect with the upstream and downstream equipment. If floor space is limited but sufficient plant height is available, the vertical type may be easier to install. The inlet and outlet positions should also be considered.

2.Screening Effect and Capacity: Which Screens Finer and Which Handles More?

This is often the first question when comparing the two types. However, it is not accurate to say that the vertical type always provides finer screening or that the horizontal type always has a higher capacity. Screening performance and capacity depend on the screen specification, rotation speed, airflow, and material characteristics such as particle size, moisture, and flowability.

Some Jiarui centrifugal sifter models can be fitted with screens up to approximately 500 mesh. The actual screening range and capacity depend on the equipment model, screen specification, and material conditions.

3.How They Work: The Principle Is the Same, but the Direction Is Different

The basic screening principle is the same for both types. Both centrifugal sifters use a rotating screening system to move material through the screening area. Fine particles pass through the screen, while larger particles continue toward the discharge outlet. Depending on the equipment design, airflow can also help with material conveying and dispersion.

4.Application: Mainly Depends on How the Production Line Is Arranged

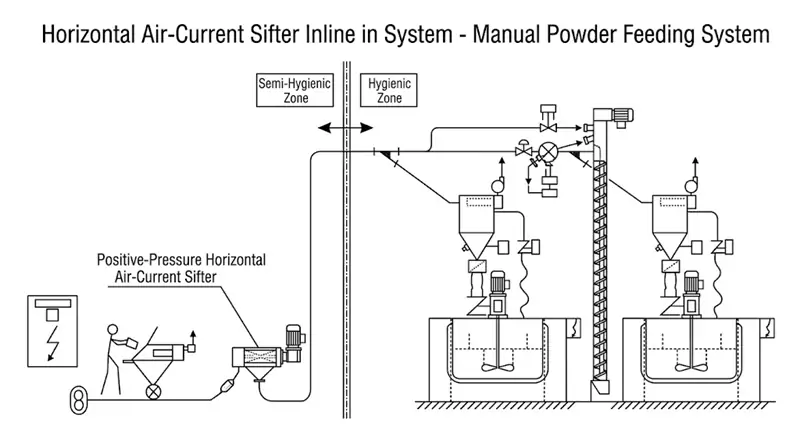

The horizontal type is better suited to continuous powder processing lines, especially processes where the upstream and downstream equipment are arranged horizontally and continuous conveying and screening are required.

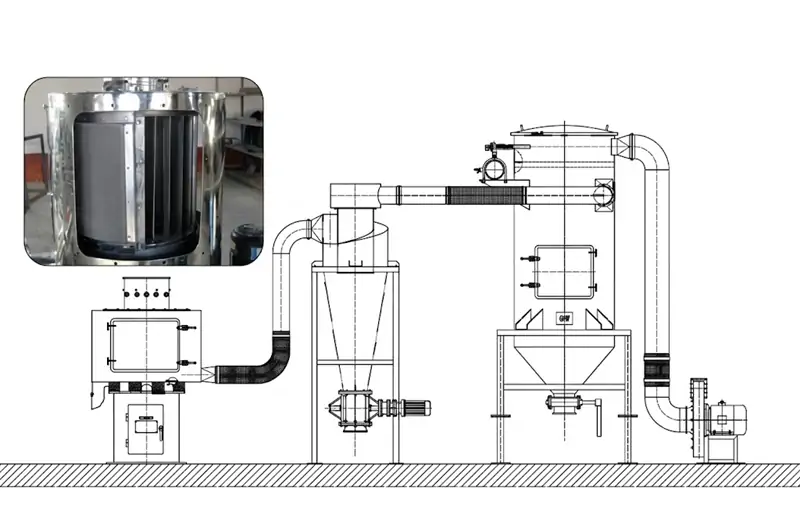

The vertical type can be used for fine and ultrafine powder screening, as well as production lines where floor space is limited and plant height can be utilized.

The applications of the two types are not completely separate. The same material may be processed by either structure depending on the screening requirements, capacity, and production line layout. The final selection should not be based on the material name alone. The equipment’s position in the overall process and how it will operate also need to be considered.

5.Maintenance and Cleaning

For centrifugal sifters, routine maintenance mainly means keeping the screen and screening chamber clean and checking the screen, rotor, and seals for wear or damage. If the screen is worn or no longer gives the required screening result, it should be replaced.

Sticky or moisture-sensitive powders may need more frequent cleaning to prevent material buildup. When comparing the two types, check whether the screen and screening chamber are easy to access, clean, and replace.

Horizontal or Vertical Centrifugal Sifter? How to Choose?

If you are mainly considering the production line layout, you can start with the following guide:

Production Requirement	Recommended Choice
Horizontal production line requiring continuous connection with upstream and downstream equipment	Horizontal Centrifugal Sifter
Limited floor space and sufficient plant height	Vertical Centrifugal Sifter
Fine or ultrafine powder screening where floor space is limited	Vertical Centrifugal Sifter
Continuous conveying and screening through a horizontal process line	Horizontal Centrifugal Sifter
Both structures can meet the process requirements	Compare specific models and configurations

If both structures can meet the screening requirement, compare the screen specification, capacity, equipment dimensions, airflow configuration, and available floor space, plant height, and inlet and outlet positions. If you are not sure which type of centrifugal sifter is suitable, the Jiarui engineering team can help you compare the options based on your material, screening requirements, and production line layout.

Contact Us

Email: info@jiaruimachinery.com
T/WA: +86 18838703198

Request a Quote

FAQs

The screening mesh of a centrifugal sifter depends on the equipment model, screen, and material conditions, so there is no single value that applies to all models. Some Jiarui centrifugal sifters can be configured with screens up to approximately 500 mesh. For finer screening, the material particle size and equipment configuration should be considered rather than looking only at the mesh size.

Screening performance cannot be determined simply by whether the sifter is horizontal or vertical. Screening accuracy and capacity are also affected by the screen specification, rotation speed, airflow, material particle size, moisture content, and flowability. If both structures meet the installation requirements, the equipment configuration should be compared according to the specific material and screening requirements.

Fine and ultrafine powders can be screened with either horizontal or vertical centrifugal sifters. The choice should not be based on particle size alone. Screen specification, required capacity, material characteristics, available floor space, plant height, and production line layout should also be considered.

A centrifugal sifter uses rotation and airflow to keep material moving through the screening area, which can help reduce material buildup on the screen. For materials that are prone to sticking, agglomeration, or clogging, additional screen-cleaning solutions, such as ultrasonic screen cleaning, can be considered according to the operating conditions. Materials with high moisture or stickiness require separate evaluation.

The main difference is how the material moves across the screen. A centrifugal sifter uses a rotating screen system to continuously separate powder and granular materials, while a rotary vibrating screen uses vibration to move material across the screen surface. Centrifugal sifters are commonly used for fine powder and continuous screening, while rotary vibrating screens can handle a wider range of powders and granular materials. The better choice depends on the material, required particle size, capacity, and screening process.

Yes. The same powder does not necessarily require one specific structure. Both horizontal and vertical centrifugal sifters may be suitable as long as the screening requirements, capacity, and equipment configuration can be met. The key factors to compare are the production line layout, available floor and height space, screen specification, capacity, and feeding and discharge methods.
