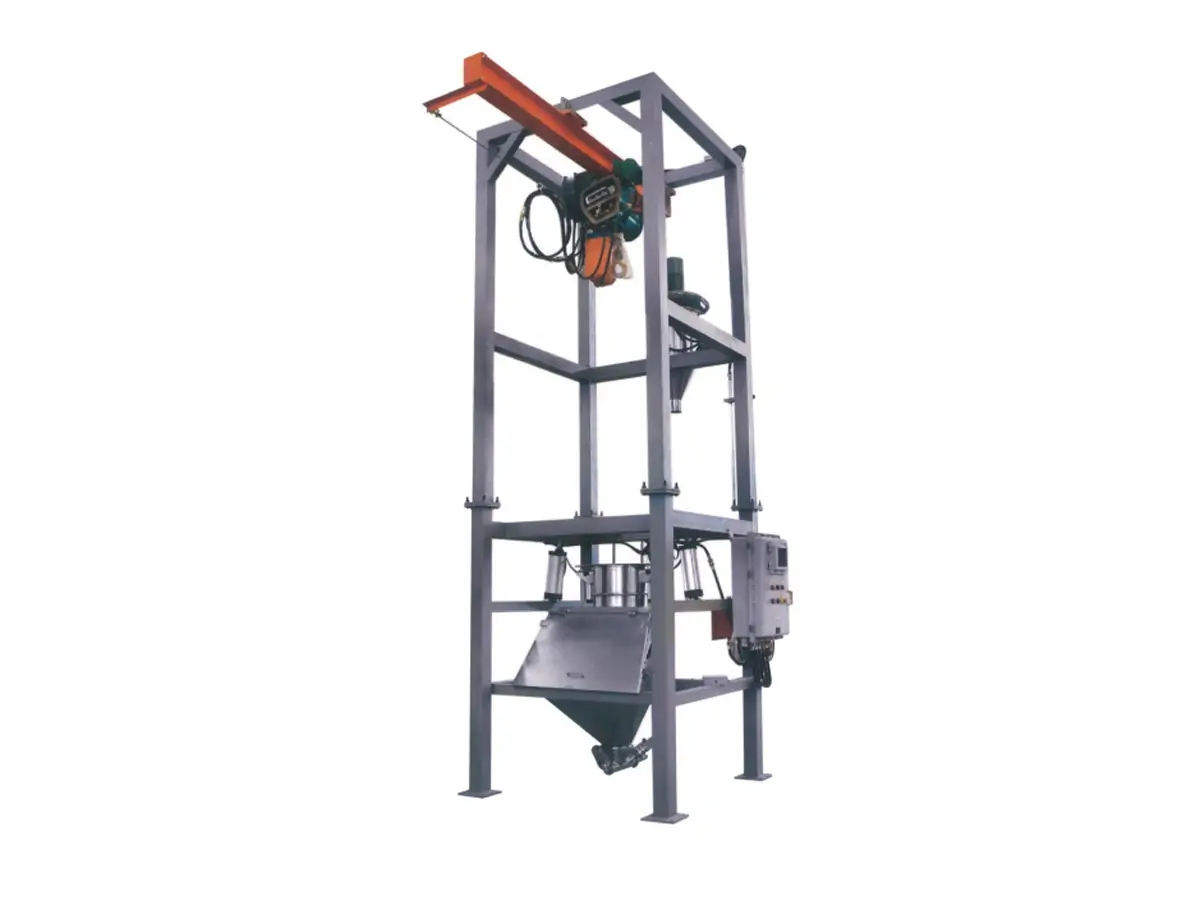

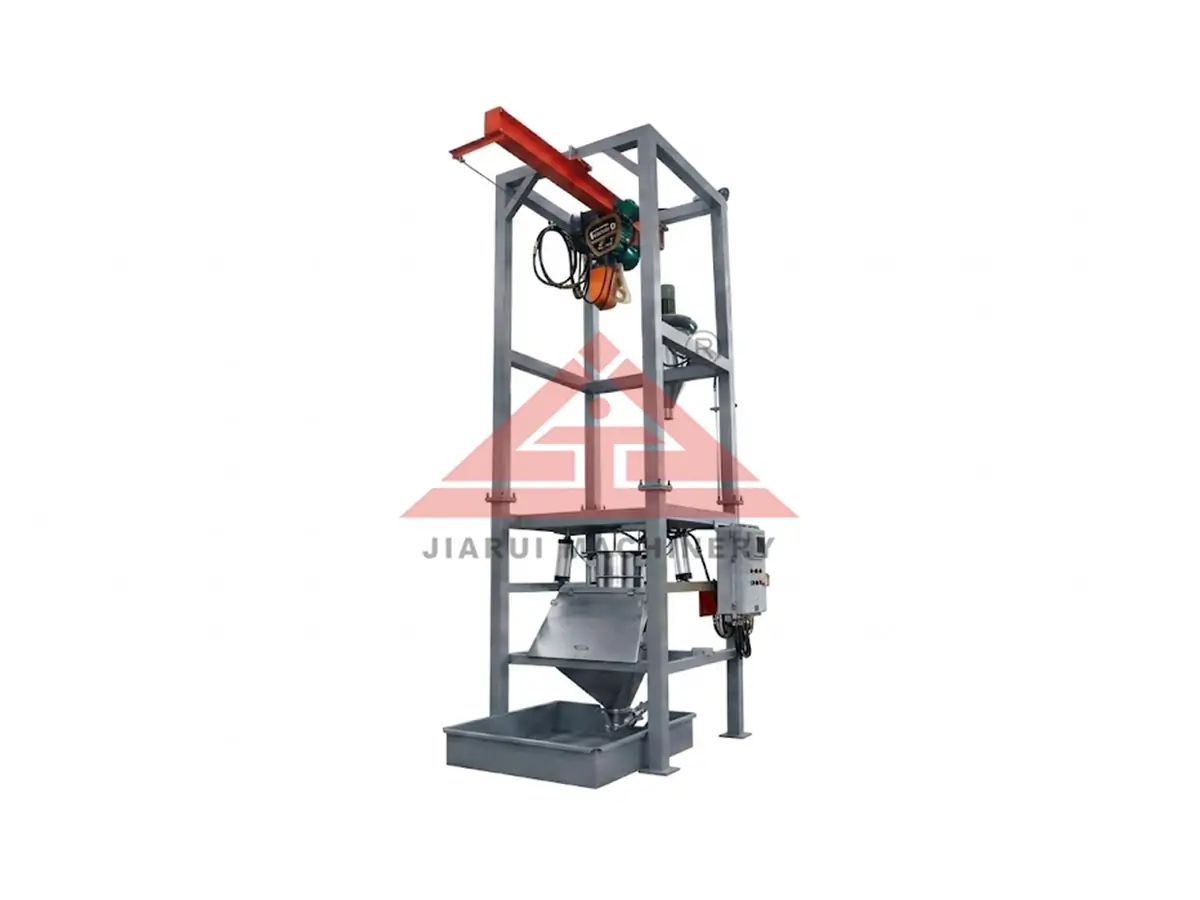

Dual Purpose Ton Bag Unpacking Machine
Dual Purpose Ton Bag Unpacking Machine is mainly used for unpacking and feeding powder and granular materials. When a production line uses both 500–2000kg ton bag raw materials and 25kg/50kg small bag materials for supplementary feeding, this equipment can handle both feeding methods in one system. It retains the enclosed unloading function for ton bags and adds a small bag feeding function, allowing raw materials with different packaging forms to enter the downstream production process through the same equipment.
- Packaging Forms: Ton bags + small bags
- Processing Capacity: 5–10 ton bags/h; 50–100 small bags/h (adjusted according to operating conditions)
- Lifting Capacity: 0–2 T
- Suitable Materials: Powder and granular materials
- Equipment Structure: Enclosed unpacking and feeding structure
- Dust Collection Method: Equipped with a dust collection system to reduce dust dispersion during feeding
- Contact Materials: Carbon steel / SS304 / SS316L
- Customized Design: Jiarui can customize equipment solutions according to material characteristics, capacity requirements, and site layout.
Why Choose a Dual Purpose Ton Bag Unpacking Machine?
In some powder and granular material production lines, raw materials are not always supplied in the same packaging format. Some main materials are transported in 500–2000kg ton bags, which are suitable for continuous unloading through a ton bag unloading machine; while some auxiliary materials, additives, or formula ingredients are still supplied in 25kg/50kg small bags and require manual feeding.
Traditional Ton Bag Unpacking Machines are mainly designed for ton bag material unloading. When small bag feeding is also required during production, an additional small bag feeding machine is usually needed, which increases equipment investment and requires more installation space.
This type of equipment mainly solves the problem of handling both ton bag materials and small bag materials on the same production line without installing two separate feeding systems. It can complete enclosed unloading of ton bags and also support manual feeding of small bags, allowing different packaging forms of raw materials to enter the downstream process through one feeding system. It is more suitable for production lines with multiple packaging specifications and various raw material types.
Difference Between a Standard Ton Bag Unpacking Machine and a Dual Purpose Model
| Comparison Item | Standard Ton Bag Unpacking Machine | Dual Purpose Ton Bag Unpacking Machine |
| Applicable Packaging | Ton bag (FIBC Bulk Bag) | Ton bag (FIBC Bulk Bag) + small bag |
| Main Function | Enclosed unloading of ton bags | Ton bag unloading + small bag feeding |
| Application Scenario | Production lines mainly using ton bag materials | Production lines using both large bags and small bags |
| Equipment Configuration | Additional equipment required for small bag feeding | One machine meets two feeding requirements |
| Purchasing Focus | Unloading stability, sealing performance, and dust control | Packaging compatibility, feeding flexibility, and equipment utilization |
How Does It Work?
The Dual Purpose Ton Bag Unpacking Machine is designed for production sites where ton bag and small bag packaging materials are used at the same time. When using ton bags, the material enters the equipment through lifting, positioning, and enclosed unloading. When using small bags, operators can directly add materials through the feeding area. Both feeding methods share the lower hopper and discharge outlet, and the equipment can be connected with conveying equipment or storage equipment according to production requirements.

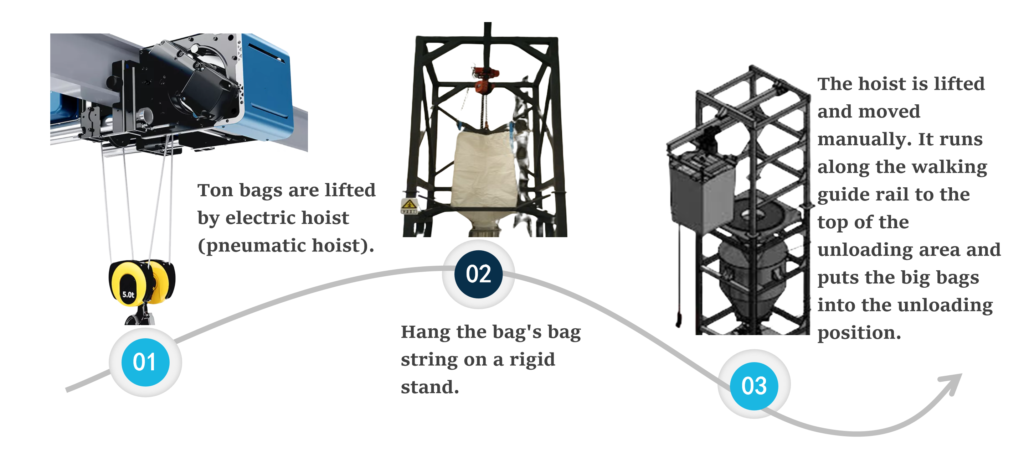

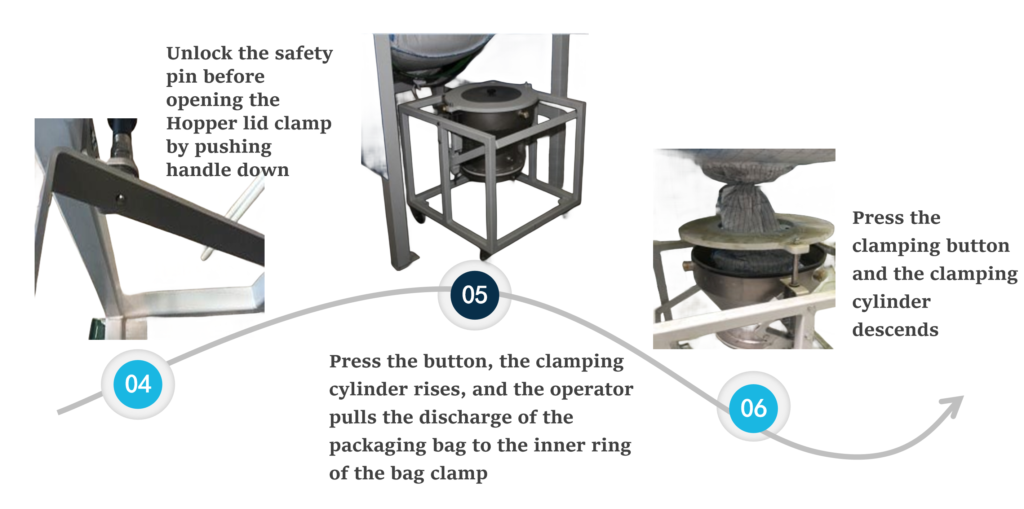

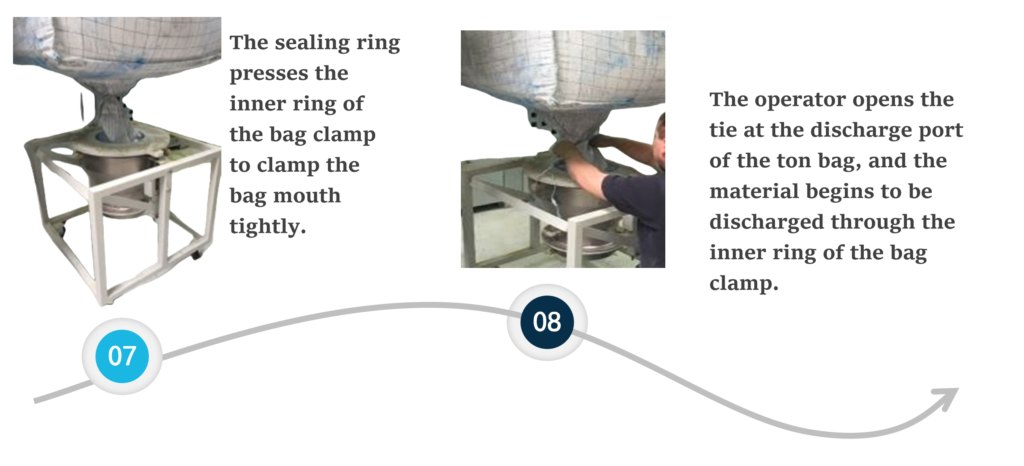

Ton Bag Unloading Method：When using ton bags for feeding, operators first lift the bag to the upper part of the equipment through an electric hoist or other lifting device, then fix the ton bag outlet for enclosed unloading. For powder materials with poor flowability, the equipment can be equipped with flow aid devices to improve material discharge and reduce problems such as bridging and arching. The discharged material enters the lower hopper and can be connected with downstream equipment such as screw conveyors, vacuum feeders, and rotary valves according to production line requirements.

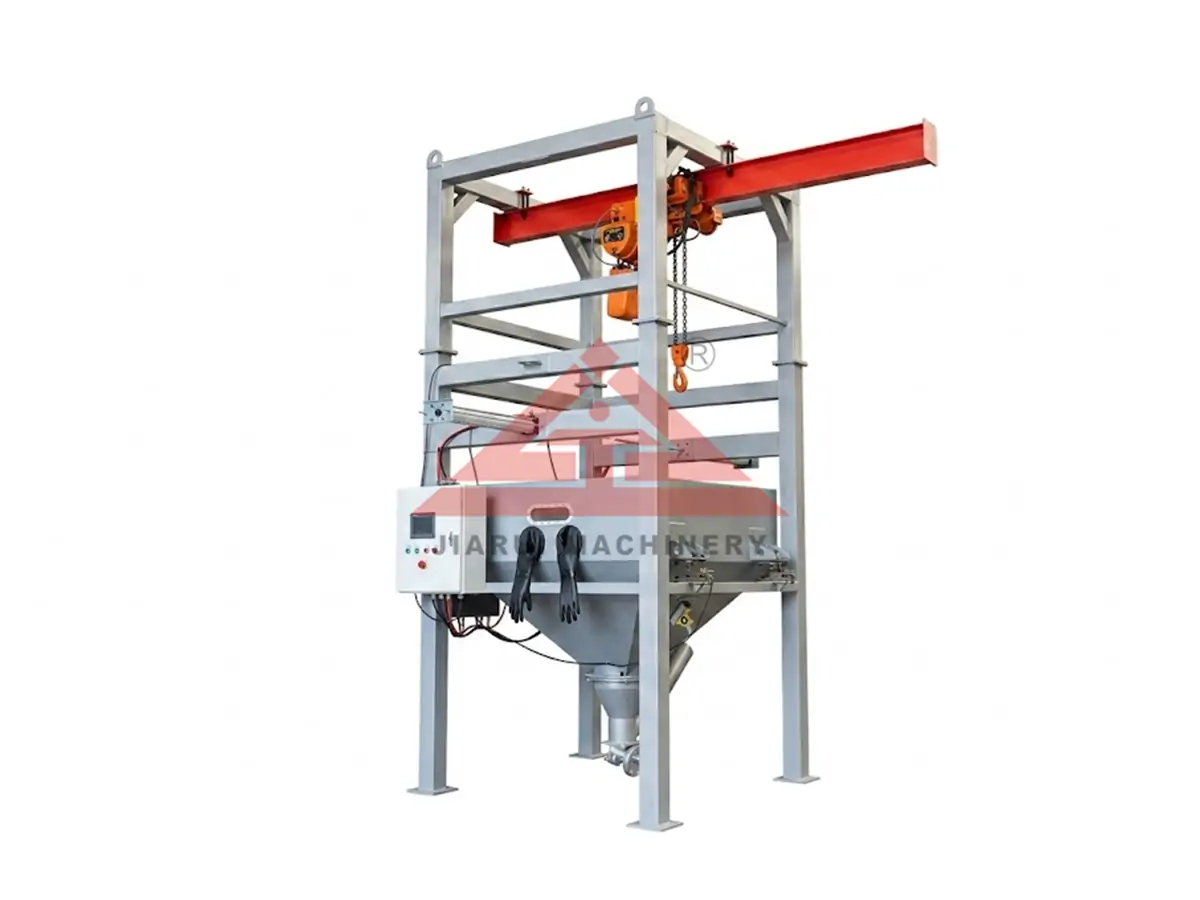

Small Bag Feeding Method：When 25kg/50kg small bag materials need to be added during production, operators can manually feed the materials through the front feeding area of the equipment. Small bag materials enter the equipment and share the same discharge channel with materials unloaded from ton bags. For materials that generate dust easily, a dust collection system can be equipped to collect dust generated during feeding and reduce dust dispersion in the workshop.

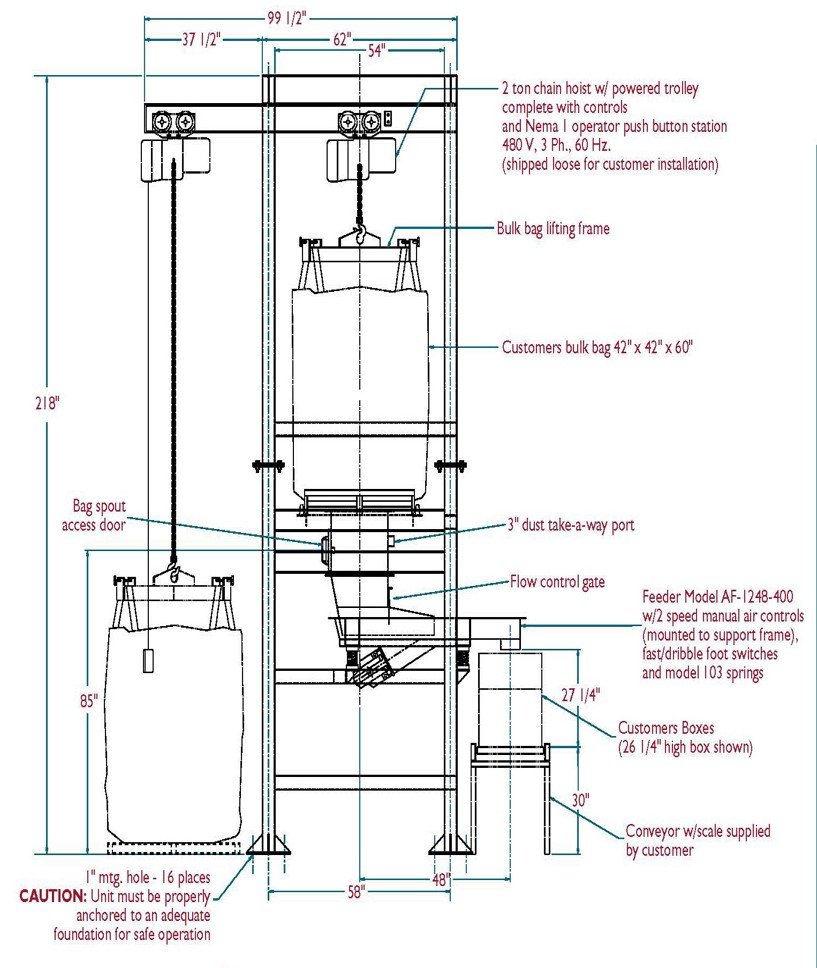

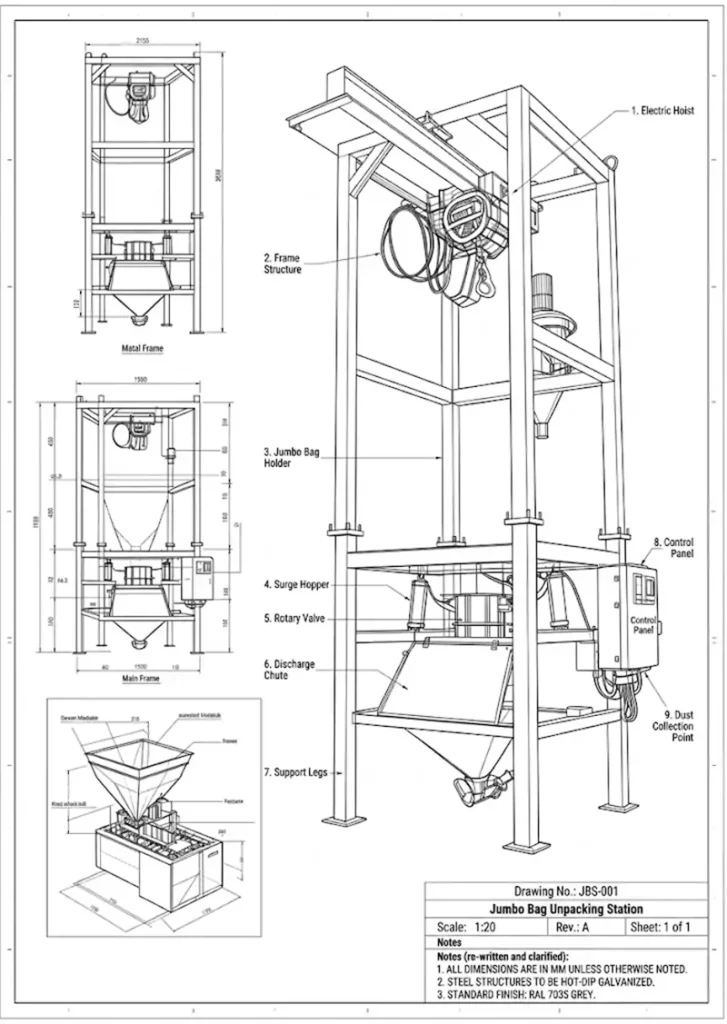

Core Structure
In addition to ton bag unloading, the Dual Purpose Ton Bag Unpacking Machine is equipped with a small bag feeding area, allowing one machine to handle different packaging forms of raw materials. The equipment configuration is adjusted according to material characteristics, packaging methods, and downstream conveying requirements.

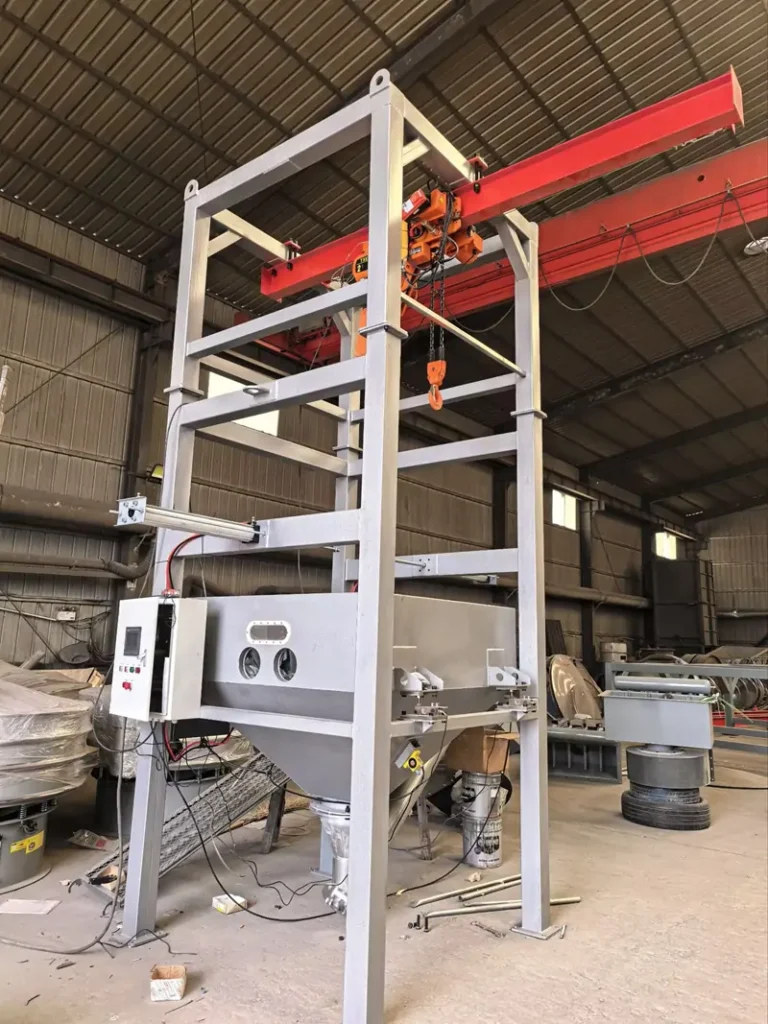

Ton Bag Loading Section：The upper part of the equipment is equipped with a ton bag hanging position and lifting device, which are used for installing and positioning 500–2000kg ton bags. After the ton bag is placed in position, operators complete bag hanging, fixing, and unloading operations. This structure directly affects the convenience of ton bag installation and the stability of equipment operation during unloading.

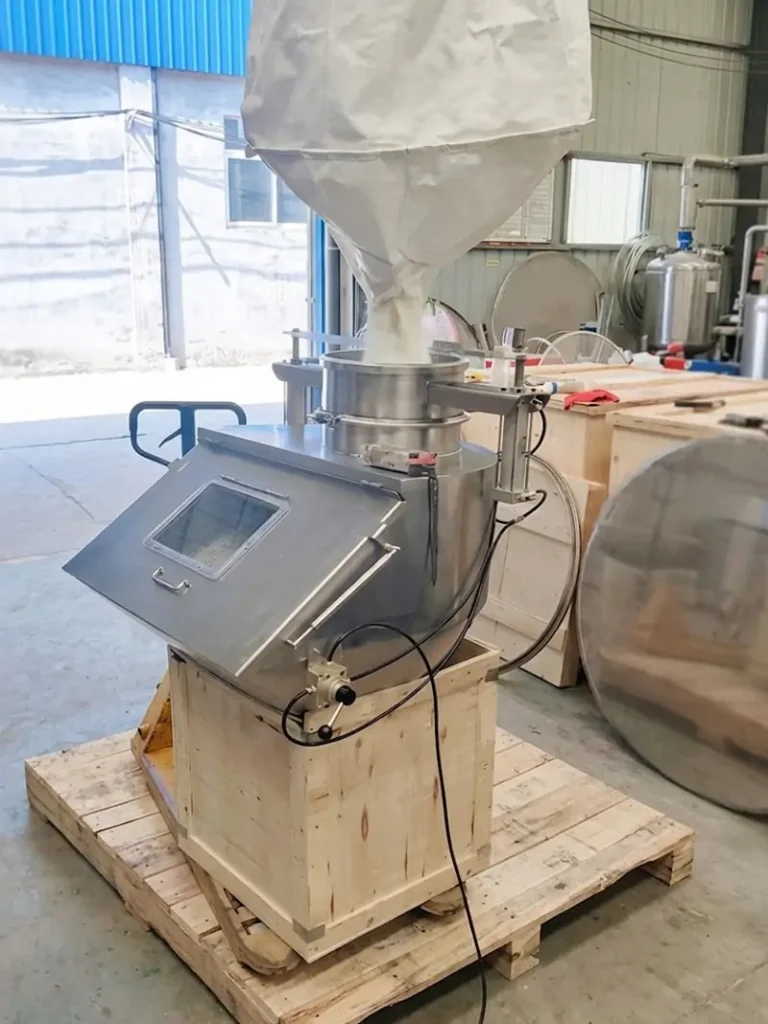

Feeding and Unloading Section：The equipment is equipped with an enclosed hopper inside, which receives materials discharged from ton bags and materials added through the small bag feeding area. The key point of the dual-purpose design is not simply adding another feeding inlet, but allowing both packaging forms to enter the same unloading process for easier connection with downstream equipment.
Flow Aid and Dust Collection Configuration：For powder materials with poor flowability, suitable flow aid structures can be added to improve material discharge. For materials that easily generate dust, a dust collection system can be equipped to reduce dust dispersion during feeding.
Discharge Connection：The bottom of the equipment is equipped with a discharge outlet, which can be connected with screw conveyors, vacuum feeders, rotary valves, and other downstream equipment according to production line requirements. The outlet size, installation direction, and connection method need to be determined according to the customer’s site layout.
.
Suitable Materials
The Dual Purpose Ton Bag Unpacking Machine is suitable for production lines where both ton bag and small bag raw materials are used. It can handle various powder and granular materials. Different configurations can be selected according to material flowability, dust generation, and hygiene requirements.
Bulk Bag Powder Materials
Bulk Bag Granular Materials
Bagged Powder Materials
Food and Pharmaceutical Materials
| Material Type | Common Materials | Main Considerations |
| Powder Materials | Calcium carbonate, titanium dioxide, resin powder, flour, etc. | Focus on material flowability, smooth discharge, and dust control |
| Granular Materials | Plastic pellets, resin pellets, rubber granules, etc. | Consider material impact during discharge to avoid particle breakage and unstable conveying |
| Small Bag Packaged Materials | Additives, auxiliary materials, formula ingredients, etc. | Suitable for manual supplementary feeding during production |
| Food and Pharmaceutical Materials | Milk powder, starch, sugar powder, pharmaceutical excipients, etc. | Focus on contact materials, cleaning requirements, and enclosed feeding |
Powder and Granular Materials：For powder materials, the main considerations are smooth discharge and dust control. Materials with poor flowability can be equipped with flow aid devices. For granular materials, the discharge method needs to be controlled to reduce impact and maintain particle integrity.
Combination of Ton Bag and Small Bag Feeding：When a production line uses both 500–2000kg ton bag raw materials and 25kg/50kg small bag materials, the Dual Purpose Ton Bag Unpacking Machine allows both packaging forms to share one feeding system, reducing equipment configuration and installation space.
How to Select
When selecting a Dual Purpose Ton Bag Unpacking Machine, the first consideration is the packaging format used in the production site. If raw materials include both 500–2000kg ton bags and 25kg/50kg small bags, this type of equipment can reduce the need for two separate feeding systems. If all raw materials are supplied in ton bags, a standard ton bag unloading machine is usually sufficient.
| Site Condition | Recommended Selection |
| Only ton bag materials | Standard Ton Bag Unpacking Machine |
| Ton bags + small bags used together | Dual Purpose Ton Bag Unpacking Machine |
| Powder materials with poor flowability and slow discharge | Add flow aid devices |
| High dust generation during feeding | Configure dust collection system |
| Food and pharmaceutical production | Select SS304/SS316L stainless steel materials |
- Check Packaging Method：The Dual Purpose Ton Bag Unpacking Machine mainly solves the problem of using different packaging forms with one feeding system. Before purchasing, it is necessary to confirm the ton bag weight, small bag specifications, and the usage frequency of both packaging forms, as these factors affect the equipment structure design.
- Check Material Characteristics：Different materials have different discharge performance. Fine powders and lightweight powders may cause dust generation or bridging and require suitable flow aid structures. Granular materials need attention to the discharge method to avoid affecting particle integrity.
- Check Production Line Connection：If the equipment needs to connect with storage hoppers, screw conveyors, vacuum feeders, or other downstream equipment, the installation position, discharge direction, and outlet dimensions should be confirmed in advance to ensure proper integration with the existing production process.
Customization Capability
Each factory has different raw materials and production processes, so the Dual Purpose Ton Bag Unpacking Machine needs to be configured according to actual operating conditions. Factors such as ton bag size, small bag feeding frequency, material flowability, and downstream conveying method will affect the equipment structure. Jiarui can design suitable equipment solutions according to customer requirements, allowing ton bag unloading and small bag feeding to be completed through the same system.
During the design process, powder materials mainly require consideration of smooth discharge and dust control during feeding, while granular materials require attention to the discharge method to reduce particle breakage. According to production requirements, the discharge outlet, installation dimensions, contact materials, and connection method with downstream equipment can also be adjusted.To provide a more suitable solution, customers usually need to provide the following information:
- Material Information: Material name, powder or granular type, flowability, whether it is easy to generate dust or form lumps
- Packaging Specifications: Ton bag weight and dimensions, small bag specifications, and usage frequency
- Production Requirements: Feeding capacity per hour, continuous production or intermittent feeding
- Site Conditions: Installation space, inlet and outlet direction, downstream connection equipment
- Special Requirements: Food-grade materials, explosion-proof requirements, automatic control, and other requirements
Jiarui Manufacturing
Compared with standard ton bag unloading equipment, the Dual Purpose Ton Bag Unpacking Machine needs to meet both ton bag unloading and small bag feeding requirements. Jiarui adjusts the equipment structure according to customer packaging methods, material characteristics, and production processes, allowing different packaging forms of raw materials to enter the downstream process through the same feeding system.
For 500–2000kg ton bag materials, the equipment focuses on lifting stability, ton bag positioning, and enclosed unloading. For different powder and granular materials, the discharge structure and flow aid method need to be adjusted to reduce bridging, dust generation, and poor material discharge.During the use of FIBC bulk bags, proper lifting and safe operation are also important. Relevant requirements can refer to FIBC bulk bag handling safety guidelines.

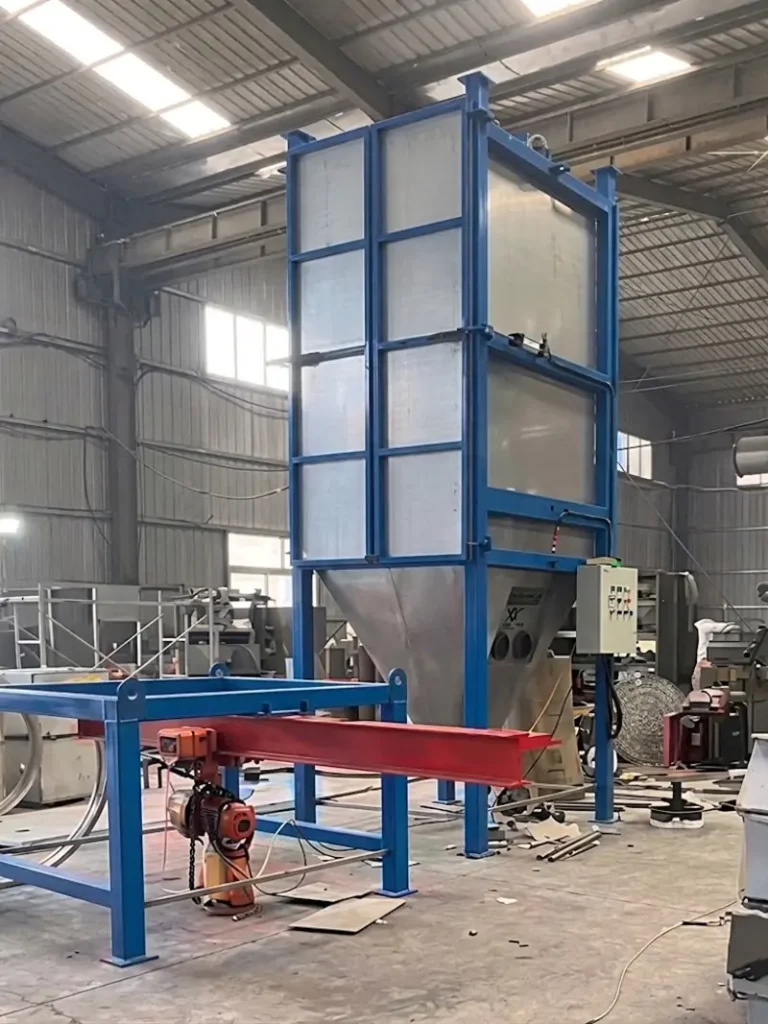

After the complete machine is assembled, Jiarui will check the ton bag lifting, small bag feeding, unloading operation, and connection interfaces according to customer requirements, ensuring that the equipment can be installed and put into production.
